Yamaha YFZ450R / YFZ450X

We are extremely excited to introduce our all-new High Clearance Yamaha YFZ450R XC A-arms!

We took every recommendation from our top racers as well as any complaints we've received from them and all other customers, piled it all together and built what we believe to be the best set of XC a-arms available for the YFZ450R.

Here is what we came up!

• We kept the same geometry as the old-style DC-Pro's with the same XC width of   -1 1/8" narrower per side with no forward placement. So, there's no need to modify your shock tuning. Customers that are switching over from Houser arms will also be able to reuse their same shocks.
• Completely redesigned the lower arm to feature an entirely boxed in shock mount while also including a high clearance bend to achieve maximum ground clearance. That means the bottom of your shock is safe from everything on the trail as are the arms themselves.
• We got rid of all of the pivot bearings and delrin bushings and replaced them with our new greasable Polyurethane bushings in order to extend service intervals (these bushings last an insanely long time) and provide extra cushion between the trail and the rider as the poly bushings have more give compared to delrin or bearings
• Arms are made out of 4130 Chromoly and are completely tig welded
• Still requires the use of a 20" extended length shock
• The weight of these new arms is the exact same as the old style, so you are gaining more strength while not adding any additional weight.
• Shock mount has clearance for all aftermarket shocks
• Kit still includes our tried-and-true caster corrector bracket, and caster spacers
• We are also now including dust caps for the lower shock bolt to prevent mud from building up inside.

We've kept our OG LSR look that you guys are used to seeing on our nerf bars with the pointed tip, but don't let that fool you, these are not the same nerf bars in any way, shape, or form.

We took every recommendation from our top racers and any complaints we've received from our customers, piled it all together and built what we believe is the best set of nerf bars available.

Here is what we came up with for the Gen 3's!

• We kept the massive 1.66" OD 6061 aluminum main hoop.
• We've added a built-in heel guard using 1.31" OD 6061 aluminum tubing. This makes for a much larger heel guard overall for more foot room as well as decreased weight over the chromoly steel heel guard that they used to have.

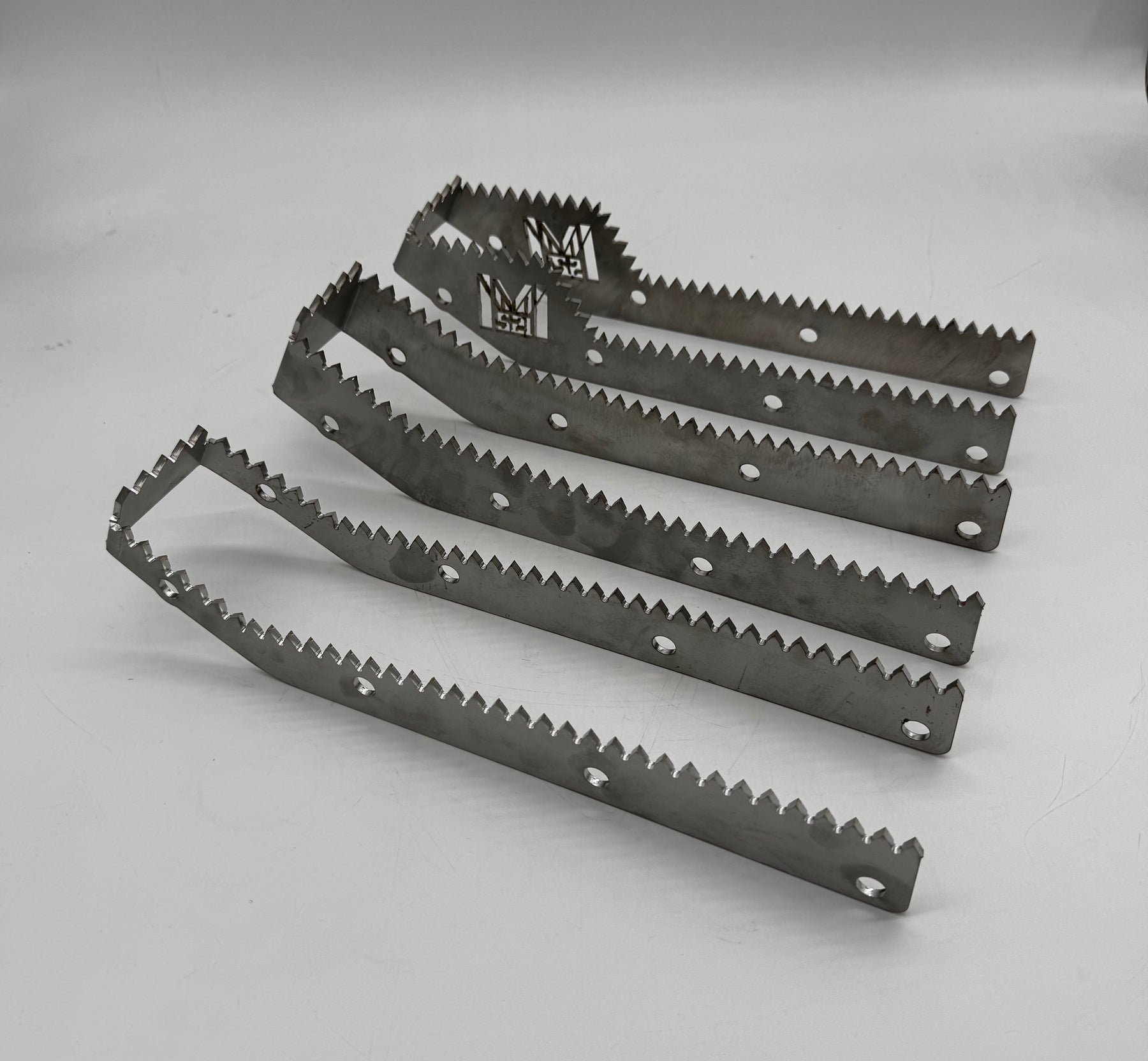

• Completely redesigned the net mounts to a simple double loop design with teeth. This makes removing and installing the nets a breeze as well as cleans up the whole look of nerf bars by having much smaller net mounts.
• The net mounts on the footpeg are also a double loop design through a plate that gets bolted to the foot peg and locks the nets in place by tightening of the bolts. This is a key feature for XC racers who are tired of banging the foot peg on a rock and rendering their nerf bars useless as they can no longer replace the nets. Since the design is less bulky, you'll have less chance of hitting them, but should you ever smash them you can simply replace the bolt on piece rather than the whole nerf bar.
• Redesigned foot pegs that are now made out of stainless steel, so you don't have to powder coat them, and they won't rust. We've increased the foot peg size to 12" long and 2 1/2" wide with a big kick up at the end to keep your feet planted. Foot pegs also no longer have middle teeth in order to aid in easy flushing of mud and dirt to ensure your boots have the most grip possible on the pegs.

• Increased inner diameter size on the tube underneath the foot peg for more strength.
• Additional gusseting behind the foot pegs to keep from bending/breaking when hit.
• Completely redesigned front mount to increase simplicity and save weight.

The Lone Star Racing Sport A-Arms are +3/8" wider with no forward placement per side. They are made from 4130 chromoly steel for superior strength and feature our quick camber and quick caster adjustments. The Sport kit will use stock length shocks but we recommend aftermarket shocks to compensate for the additional width. The A-Arms are backed by our Lifetime Warranty.(excluding wear items)

• Uses factory inner pivot tubes at mounting points
• Fits only the fuel injected YFZ450R and YFZ450X models

The Lone Star Racing DC-4 A-Arms are +3/8" wider with no forward placement per side. They are made from 4130 chromoly steel for superior strength and feature our quick camber and quick caster adjustments. They also feature our caster corrector bracket to correct caster change throughout the travel. The DC-4 kit requires long travel shocks. The A-Arms are backed by our Lifetime Warranty.(excluding wear items)

• Shock Specs:

           20" Extended Length

           5.25" Shaft Travel

           2.0:1 Leverage Ratio

• Reuses factory inner pivot tubes on lower A-Arms
• Must run spacer if using Precision Steering Stabilizer. Can be purchased here https://lsracing.com/products/yamaha-yfz450r-precision-stabilizer-spacer

Instructions: YFZ_R_DCPRO-DC-4_A-arms.pdf (shopify.com)

The Lone Star Racing DC-PRO A-Arms are +3/8" wider with no forward placement per side. They are made from 4130 chromoly steel and use a cup style lower ball joint for superior strength and feature our quick camber and quick caster adjustments. They also feature our caster corrector bracket to correct caster change throughout the travel. The DC-PRO kit requires long travel shocks. The A-Arms are backed by our Lifetime Warranty.(excluding wear items)

• Width based on "R" model
• Shock Specs:

           20" Extended Length

           5.25" Shaft Travel

           2.0:1 Leverage Ratio

• Must run spacer if using Precision Steering Stabilizer. Can be purchased here https://lsracing.com/products/yamaha-yfz450r-precision-stabilizer-spacer

Instructions: YFZ_R_DCPRO-DC-4_A-arms.pdf (shopify.com)

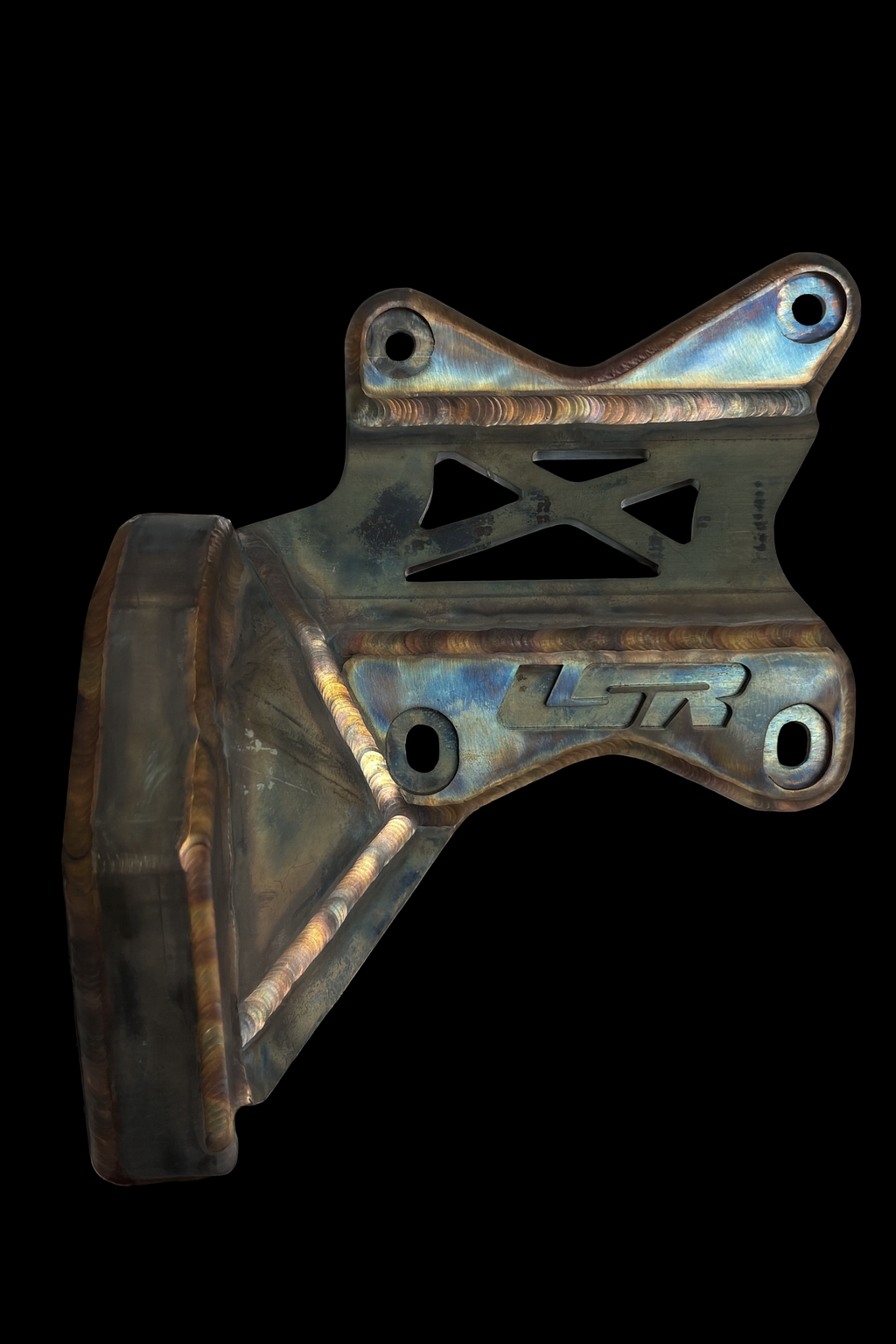

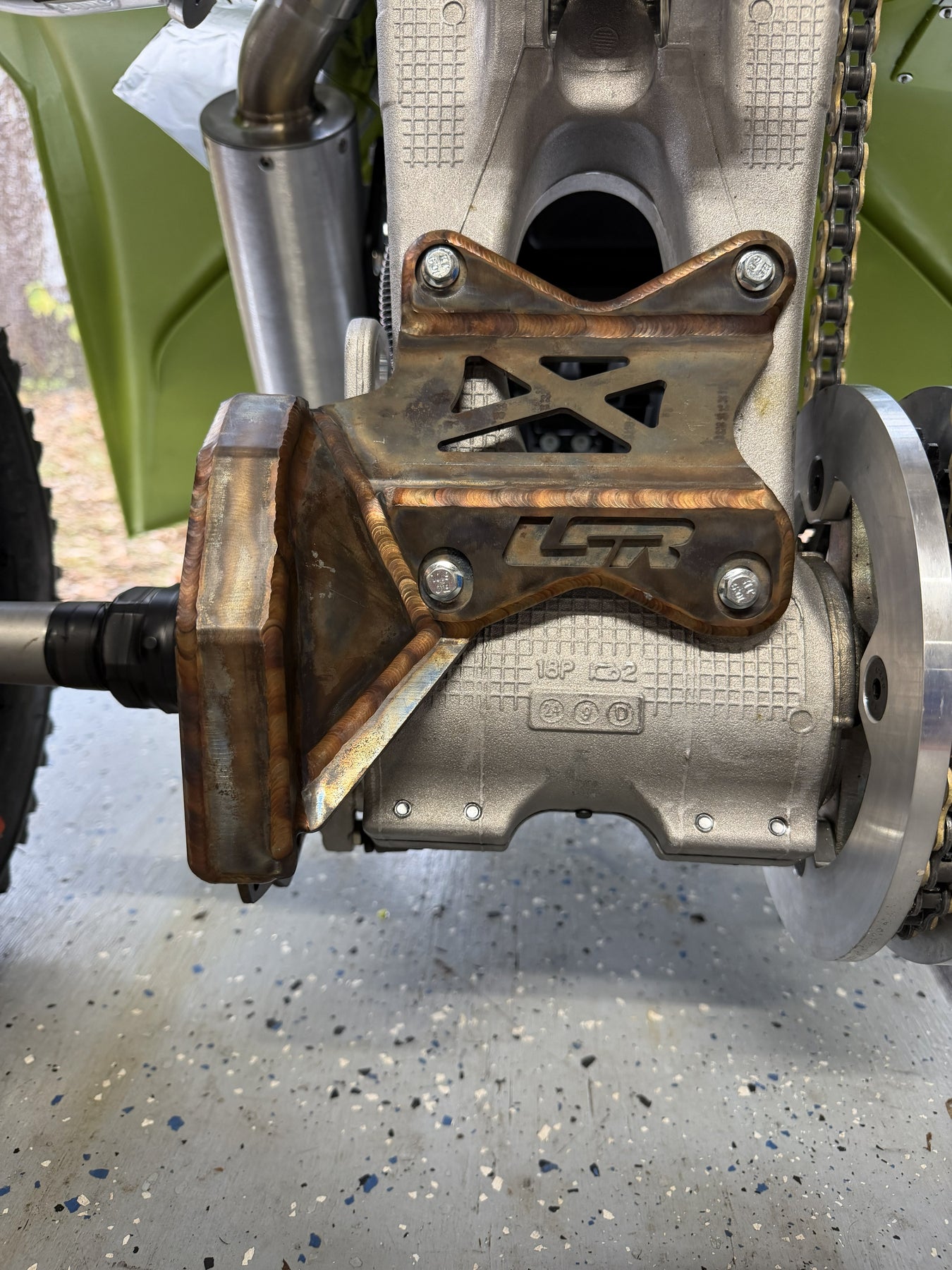

2009+ Yamaha YFZ R Rotor Guard. Completely redesigned from the top down, compared to the previous product iteration. We wanted to take a new approach to what a "wear item" should be after looking at what the industry currently offers. Our thoughts are, why buy two or three knowing they have to be replaced, when you can buy one and have the confidence it will last! This new rotor guard is manufactured from the same material as our legendary Axcalibar axle for maximum corrosion resistance against those deep muddy conditions! But we didn't stop there! This rotor guard has been heat treated for superior strength and hardness to withstand the toughest conditions you can throw at it. No matter if it's rocks, roots, or ruts, it will keep your rotor protected and your brakes consistent for well beyond anything else out there! It utilizes oversized gusseting for improved rigidity, and counterbored mounting holes to protect the bolts from sheering off against rock strikes. Comes standard with grade 10.9 6mm bolts, but the mounting holes are oversized to 8mm for those that want to drill and tap their swing arm for the larger 8mm bolt diameter. Offered in Raw, heat treated stainless color (recommended), Semi-Gloss Black, or Custom Color of your choosing.

The Lone Star Racing Steering Stem  is made from 4130 chromoly for superior strength and comes with a billet aluminum Anti-Vibe clamp kit to help reduce vibrations and rider fatigue.

• +1+0 height is most popular

The Lone Star Racing Yamaha YFZ450R Swing Arm is made from 4130 chromoly for superior strength. It comes with the front needle bearings and will reuse the OEM bearing housing and brake plate. It has optional skid plate mounts and when chosen it will not come with a rear chain guide mount.

• Uses banshee style chain slider. (not included)
• No skid plate option will use a Banshee style chain guide(not included). A swingarm with skid plate mounts will still include a chain guide mount.

The Lone Star Racing Adjustable Sub Frame is made from 4130 chromoly for superior strength and will use all OEM mounting points. The lower sub frame mounting points use heim joints that allow you to lower the sub frame height.

• Must drill out threads on stock frame to run bolt and nut supplied

The Lone Star Racing DC-PRO Foot Pegs feature a wide foot peg with aggressive inner crisscross teeth to aid in traction and reduce boot wear. They have an aggressive rake on the ends to prevent your foot from slipping off of the peg and can be purchased as just a foot peg or combo them with our heel guards.

• Sold as a pair
• Comes with pro-peg mounts to bolt to frame.(uses stock bolts)
• Heel guards are made from 4130 chromoly. No finish option will be powder coated silver unless otherwise specified.
• Heel guards will not work on Raptor 700.
• You must drill the foot peg and pro-peg and bolt on using supplied bolts.

Replacement handlebar clamp kits for LSR steering stems.

LIGHTER. STRONGER. FASTER.

Lonestar's all new Titanium Series of ATV axles are just that. The titanium axle line is approximately 43% lighter than its stainless-steel equivalent. It has been heat treated for superior aerospace grade strength and fracture resistance. The Titanium Series holds near equivalent mechanical properties to our new and improved Race Series axles that are approximately 60% stronger than our standard Pro Series that has been industry leading for over a decade. With the axle's un-sprung rotating mass cut nearly in half, approximately 2.5 - 3.25 of robbed horsepower during acceleration has been freed up with zero additional wear to the drivetrain components of your machine. Who doesn't love FREE HORSEPOWER?!

Each axle is precision machined to exact OEM specifications so all stock or Lone Star Racing accessories can be used.  Axcalibar axles are easy to install and vastly improve the stability of your ATV while providing extraordinary strength and radiant looks. Axle is fully adjustable for each riders needs.

• Adjustable from -3" to Stock(based off of "R" model)
• Fits YFZ450R and YFZ450X

After years of being the ATV industry's leading supplier of ATV axles, Lonestar Racing is proud to announce the next generation in strength, The Axcalibar Race Series Axle. Race proven in the toughest conditions by the world's fastest racers, the race series axle line up retains the same industry leading fit and finish as the current Pro Series offering, while improving shaft strength by an incredible 60%. Staying true to our roots and standing behind our products, the race series line up continues the tradition of the industry leading LIFETIME WARRANTY. You bend it, we straighten it. You break it, we replace it. As always, Axcalibar axles are easy to install and vastly improve the stability, handling and fine tuning of your ATV while providing extraordinary strength and radiant looks. The axle width is fully adjustable for each rider's application requirements.

The Lone Star Racing Pro Series Axcalibar Axles are one of the most highly recommended axles on the market for both racers and recreational riders. Each axle is backed by a LIFETIME WARRANTY unsurpassed by any other axle manufacturer. Each axle is precision machined to exact OEM specifications so all stock or Lone Star Racing accessories can be used. The axles are built from a special stainless material so you no longer have to worry about chrome chipping or rust. Axcalibar axles are easy to install and vastly improve the stability of your ATV while providing extraordinary strength and radiant looks. Axle is fully adjustable for each riders needs.

• Adjustable from -3" to Stock(based off of "R" model)
• Fits YFZ450R and YFZ450X

The Lone Star Racing Billet Aluminum Bearing Housings are machined from 6061 aluminum for superior housing strength. Bearing Carriers are complete, ready to drop in and ride.  They come complete with heavy duty double row bearings, seals, and a steel center tube. They feature sealed bearings that are pre-greased and fully rebuild-able. They will fit stock or aftermarket round housing swingarms.

The Lone Star Racing Billet Aluminum Rear Wheel Hubs are one piece rear wheel hubs and are made from 7075 billet aluminum for superior strength and excellent weight savings over stock. The rear wheel hubs have the same pressed in metric studs as stock hubs and will fit the OEM axle as well as the Axcalibar Pro Racing Axle.

• Come as a pair
• 4 x 115 bolt pattern or 4 x 110 bolt pattern available

Instructions: Rear wheel hubs.ai (shopify.com)

The Lone Star Racing Billet Aluminum Front Wheel Hubs are a perfect way to improve strength and appearance. They come complete as a pair with high performance, sealed bearings and a billet dust cap.

The Lone Star Racing Heavy Duty Front Spindle Shafts are a direct replacement for the stock spindle shafts. They are machined from high strength stainless steel for superior strength over the OEM shafts.

• Sold as a pair
• Press fit part

The Lone Star Racing DC-PRO and DC-6 outer linkage is made from laser cut machined 4130 tubing and plate, and the Inner linkage is made from billet aluminum. It comes with the bearings and seals already installed; all you need to do is re-use the OEM inner pivot tubes, dust caps and bolts.

Some advantages to the DC-PRO and DC-6 linkage over the others, is that its lighter than stock. You can remove the shock and lower bolt without having to pull apart the linkage, and the rebound adjustment screw is still accessible at ride height. It has fully greasable pivots at all locations, and it is designed to reduce the bucking normally associated with the stock linkage.

NOTES:

DC-PRO Linkage needs to use an aftermarket shock (best set up)

DC-6 linkage will use a stock shock (just needs a different spring)

The Lonestar Racing Billet Locknut is designed to replace the stock steel locking nut with one Billet Aluminum unit that has double pinch bolts and is threaded to fit all Stock or Axcalibar Racing Axles.

The Lone Star Racing Pivot Bolt is made from a hardened steel for superior strength over OEM and zinc plated to resist corrosion.

• Uses OEM nut.

The Lonestar Racing Billet Sprocket Hub is designed as a slip on hub designed to fit stock or Axcalibar Racing Axles.

• Factory 4 bolt pattern

The Lone Star Racing Billet Disc Brake Hub  is made out of billet aluminum to reduce weight and improve looks. Will fit stock or Axcalibar Pro Racing axles.

The Lone Star Racing Stainless Sprocket Guard is an excellent option for XC or MX applications where ground clearance is a must. This heavy duty sprocket guard protects the sprocket and chain from rocks and debris. Pair it up with the rotor guard for superior protection.

• Fits up to a 42 tooth sprocket

The Lone Star Racing E-Brake Block Off Plate is used when you remove the emergency brake system from you rear brake caliper. The plate uses the OEM hardware.

The Lone Star Racing Billet Brake Line Clamps are designed to attach your front brake lines directly to the upper a-arms on your ATV.

• Sold in pairs(2)
• Will work with most aftermarket brake lines
• Available in 1", 3/4", or 7/8" diameter

The Lone Star Racing Steel Braided Front Brake Line Kit features two 54" brake lines that run from the master cylinder to the brake calipers, eliminating the OEM lines that are prone to leak at the "T". The kit will fit stock arms with some slack and extended A-Arms just right.

• Universal kit will fit all models unless listed separately

The Lone Star Racing Steel Braided Rear Brake Line is a high performance replacement for the OEM rear brake lines.

Quick guide to OEM brake line lengths:

Honda ATV

• 250R=22"
• 250X/300EX=22"
• 400EX=25"
• TRX450=25"

Yamaha ATV

• Blaster(LSR swingarm)=17"
• Raptor 250=22"
• Warrior(LSR swingarm)=17"
• Banshee(LSR swingarm)=17"
• YFZ450=25"
• YFZ450R=21"
• Raptor 660=25"
• Raptor 700=25"

Suzuki ATV

• LT250(LSR swingarm)=25"
• LT500(LSR swingarm)=25"
• Z400=27"
• LTR450=27"

Kawasaki ATV

• KFX400=25"
• KFX450=25"



The Lone Star Racing Universal ATV Light Mount is designed to attach in between the steering stem and handlebar clamp so you can have light in any direction you turn the bars.

• Fits almost every stock and aftermarket ATV steering stem
• Works with the Rigid SR & E Series light bars
• Comes in flat black powder coat
• Available in 6" or 10"
• Will not fit on Yamaha OEM steering stems
• Does not include light

Get amazing power and throttle response with our highly
anticipated Yamaha YFZR/XC Intake System. With over a year of R&D put
into this system it's truly a performer. With this system, we decided
to make our own high flow Air Box instead using the much restrictive stock
unit that comes with the bike. With our high flow box matched with our
high flow intake tube, this intake surpasses anything on the market when
compared.

Unique tapered design to create velocity
Enhanced filter protection
Improved throttle response
Increased hp and tq across the rpm range
Able to run the system with or without Airbox

Parts Included In System:

Custom Air tube
High Flow Box
Rubber Adapter
2 Hose Clamps
Bracket
Filter & Outerwear
2 Bolts and 2 Nuts for Subframe

• The TMD Kit consists of Front Super Protector, Lower Powerlip roller and RCG-002 rear guide.
• This Kit is for Aftermarket arms. must use the stock Yam banshee/Blaster/Raptor bolt hole pattern (they are all the same) for the rear guide to fit properly. .
• This kit fits arms like Lone Star Racing and similar type copies using the 2" rectangle tubing .
• Round & oval tube should check with mfg'er to if they made mounts to except banshee bolt pattern.
• All wear components have a 1 year replacement wear warranty in USA unless a long travel link is used.
• The TMD Banshee kit is the best on the market. Last long time and aids suspension under power

These Precision Steering stabilizers have full adjustability, impact damping, and full billet mounting for superior strength.

Pro Model has a built in reservoir to allow for thermal expansion and a stronger linkage, stem clamp, and lever.

Elite Model has all the same great features with 60% better impact damping and larger wear surfaces.

• Adjust the center stiffer than the sides or the sides stiffer than the center. Whether you prefer 10% firmer or 50% the range is huge!
• If conditions are slippery or loose: Firm up the center and soften up the sides. This will help you steer into your slide quicker and then the stabilizer will catch the back of the quad as it goes toward center reducing fishtailing.
• Want more stability when going fast and straight and less resistance when turning? You can easily tune the Precision Stabilizer to your liking.

The Shock & Vibe acts as suspension for your handlebars. The Quad's frame moves up and down and pitches left to right while the bars are suspended by the Shock & Vibe Clamp.

This gives the feel, from the rider’s perspective, that the bars are not moving, but are staying parallel to the course.

Without the bars being jerked, the quad's movement is felt in the foot-pegs as the quad kicks left to right.

This allows the rider to keep balance and position over the quad by just lifting a leg as the peg rises.

• If purchased for LSR stem it will come with anti-vibe hardware to make it work.
